前言

很久没有写Learning AV Foundation相关的文章了,言归正传本篇介绍一下简单的视频播放

了解视频播放之前我们来看戏AVPlayer需要的一些组件模型

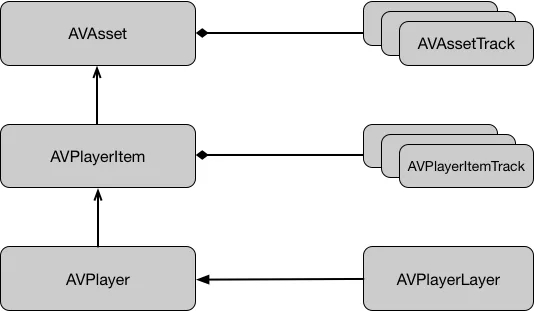

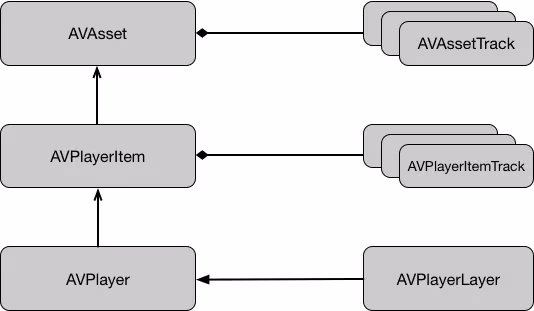

AVPlayer组件模型

AVPlayer

AVPlayer是一个用来播放基于基于时间的视听媒体的控制对象,支持播放:

本地媒体文件
异步下载媒体文件
HTTP Live Streaming协议的流媒体文件

AVPlayer 是个逻辑层组件

(应用可以分为如下几层)

UI层
业务逻辑层
持久层+网络层

如果播放MP3或AAC等音频文件, 是没有啥UI可视化的页面的。要是播放一个 QuickTime的电影或一个MPEG-4视频, 就会搞得很不适应.
如果要播放视频等功能设计到UI的话，可以使用AVPlayerLayer类。

注意: AVPlayer只管理一个单独资源的播放, 如果播放多个可以使用AVPlayer的子类AVQueuePlayer, 用它来管理一个资源队列, 当需要在一个序列中播放多个条目或者为音频、视频资源设置播放循环时刻使用这个类.

AVPlayerLayer

AVPlayerLayer构建于 Core Animation之上, 是AV Foundation中能找到的位数不多的UI组件. Core Animation 是Mac和iOS平台上负责图形渲染与动画的基础框架,主要用于这些平台的美化和动画流畅度的提升. Core Animation本身具有基于时间的属性,并且由于它基于OpenGL,所以具有很好的性能.

AVPlayerLayer扩展了Core Animation 的CALayer类, 并通过框架显示视频内容到屏幕上. 我们知道Layer是不响应事件的.

创建AVPlayerLayer需要实例化一个AVPlayer的对象，AVPlayerLayer有一个videoGravity属性可以设置三种类似填充模式的东西,用来拉扯和缩放的视频. 下面列举了16:9的视频置于4:3矩形范围来说明不同的gravity.

如下图:

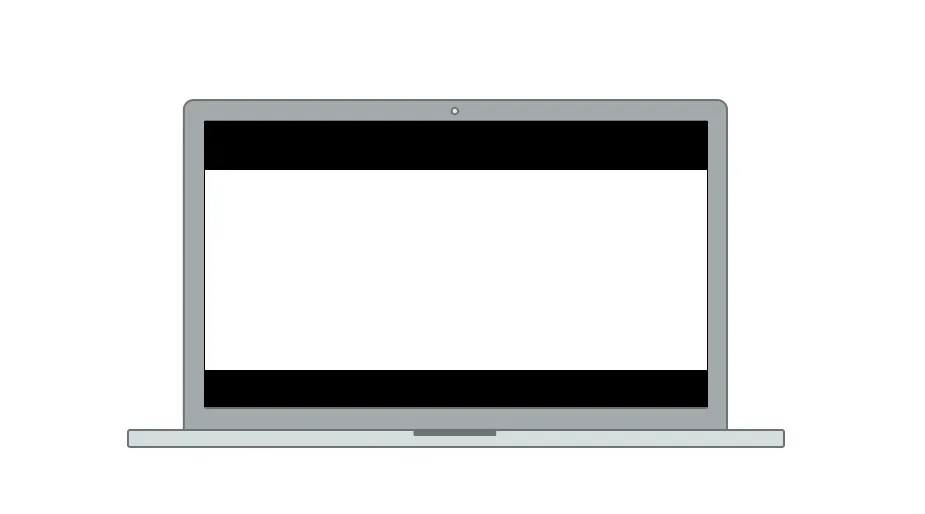

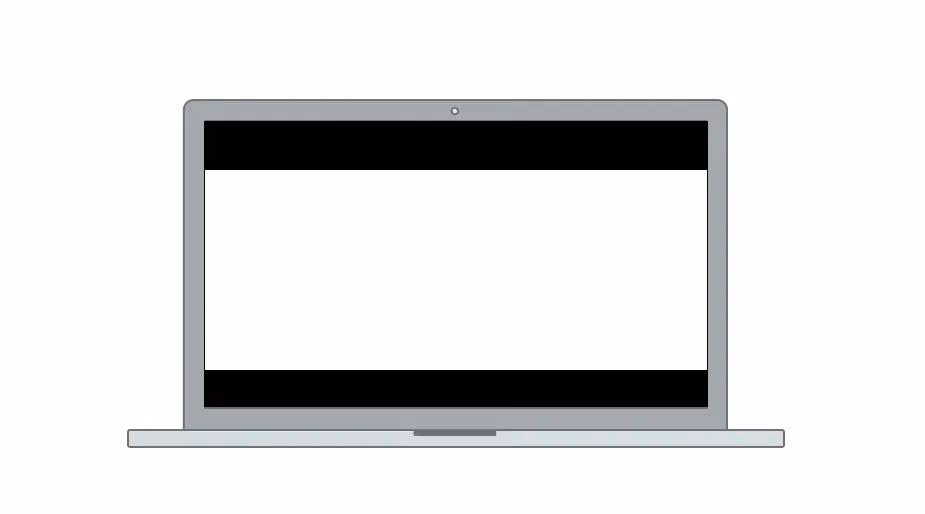

__AVLayerVideoGravityResizeAspect__保持缩放比例

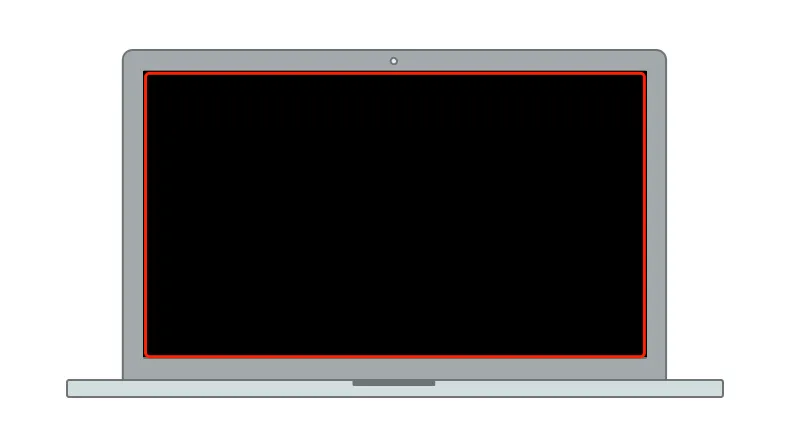

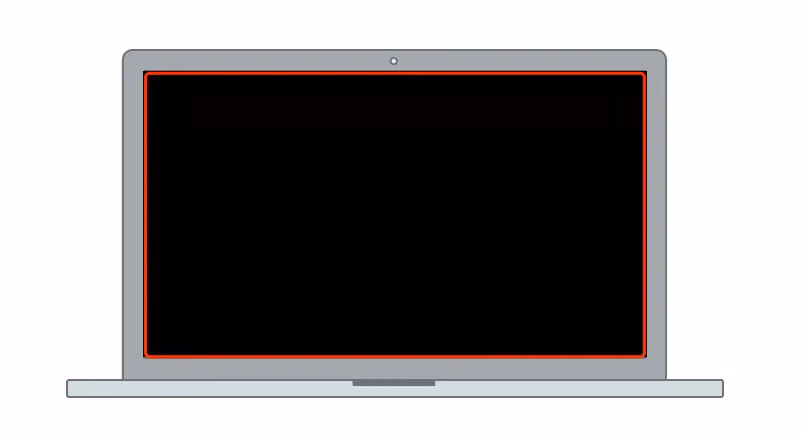

__AVLayerVideoGravityResizeAspectFill__填充

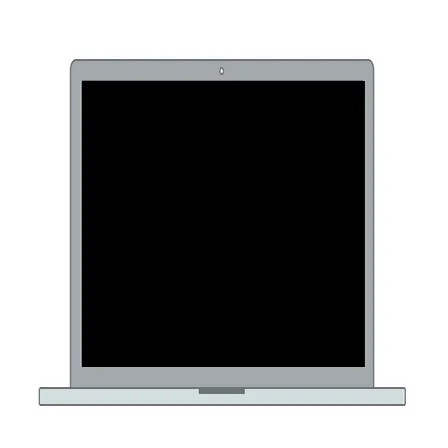

__AVLayerVideoGravityResize__拉伸

AVPlayerItem

我们需要使用AVPlayer播放AVAsset,前面我知道AVAsset元数据里面有创建时间、元数据和时长等信息.但是并没有媒体中特定位置的方法.

这是因为AVAsset模型只包含媒体资源的静态信息.这些不变的属性用来描述对象的静态信息.这就意味着仅使用AVAsset对象是不能实现播放功能的.如果播放我们需要使用AVPlayerItem

AVPlayerItem可以理解成是一个动态的AVAsset模型,
AVPlayerItem有seekToTime:方法和presentationSize:,AVPlayerItem由一个或多个媒体曲目组成.

AVPlayerItem里面有``AVPlayerItemTrack`轨道属性.

播放示例

- (void)viewDidLoad {
	self.localURL = [[NSBundle mainBundle] URLForResource:@"hubblecast" withExtension:@"m4v"];

    AVAsset *asset = [AVAsset assetWithURL:self.localURL];

    AVPlayerItem *item = [AVPlayerItem playerItemWithAsset:asset];

    AVPlayer *player = [AVPlayer playerWithPlayerItem:item];

    AVPlayerLayer *layer = [AVPlayerLayer playerLayerWithPlayer:player];

    [self.view.layer addSublayer:layer];
}

这个AVPlayerItem并没有任何代理告知我们是否已经开始播放,所以一般的搞法都是使用KVO去监听它的一个属性,AVPlayerItemStatus

typedef NS_ENUM(NSInteger, AVPlayerItemStatus) {
	AVPlayerItemStatusUnknown,
	AVPlayerItemStatusReadyToPlay,
	AVPlayerItemStatusFailed
};

当它的status变成AVPlayerItemStatusReadyToPlay就说明已载入完成准备播放.

CMTime

使用CMTime来处理各种音视频相关的时间操作,他是CoreMediaframework中的结构体.专门用于处理精确的时间,我们以前用的NSTimeInterval是存在计算不精确的问题(苹果官方说的).

typedef struct
{
	CMTimeValue	value;		//分子
	CMTimeScale	timescale; //分母
	CMTimeFlags	flags;		//标记是否失效 eg. kCMTimeFlags_Valid, kCMTimeFlags_PositiveInfinity
	CMTimeEpoch	epoch;
} CMTime;

这个结构体最关键的即使value(64位整形)和timescale(32位整形).

它表达时间的方式以分数表示比如:

0.5秒

CMTime halfSecond = CMTimeMake(1, 2); //0.5秒
CMTime fiveSecond = CMTimeMake(5, 1); //5秒
CMTime oneSample = CMTimeMake(1, 44100); //一个抽样的样本
CMTime zeroTime = kCMTimeZero;

创建自己的播放器

首先需要封装一个player,

#import <UIKit/UIKit.h>
#import "TransportProtocol.h"
@class AVPlayer;
@interface PlayerView : UIView
@property (nonatomic, readonly) id <TransportProtocol>  transport;
- (id)initWithPlayer:(AVPlayer *)player;
@end

.m文件实现

#import "PlayerView.h"
#import <AVFoundation/AVFoundation.h>
#import "THOverlayView.h"
@interface PlayerView ()

@property (nonatomic, strong) THOverlayView *overlayView;

@end

@implementation PlayerView
+ (Class)layerClass{
    return [AVPlayerLayer class];
}

- (id)initWithPlayer:(AVPlayer *)player{
    self = [super initWithFrame:CGRectZero];
    if (self) {
        self.backgroundColor = [UIColor blackColor];
        self.autoresizingMask = UIViewAutoresizingFlexibleWidth | UIViewAutoresizingFlexibleHeight;
        [(AVPlayerLayer *)[self layer] setPlayer:player];
        [[NSBundle mainBundle] loadNibNamed:@"THOverlayView" owner:self options:nil];
        [self addSubview:self.overlayView];
    }
    return self;
}

- (void)layoutSubviews{
    [super layoutSubviews];
    self.overlayView.frame = self.bounds;
}

- (id <TransportProtocol>)transport{
    return self.overlayView;
}

@end

transport 是播放器的视图点击视图代理等集成了在一起

@protocol TransportDelegate <NSObject>
- (void)play;
- (void)pause;
- (void)stop;

- (void)scrubbingDidStart;
- (void)scrubbedToTime:(NSTimeInterval)time;
- (void)scrubbingDidEnd;

- (void)jumpedToTime:(NSTimeInterval)time;

@optional
- (void)subtitleSelected:(NSString *)subtitle;

@end

@protocol TransportProtocol <NSObject>

@property (weak, nonatomic) id <TransportDelegate> delegate;

- (void)setTitle:(NSString *)title;
- (void)setCurrentTime:(NSTimeInterval)time duration:(NSTimeInterval)duration;
- (void)setScrubbingTime:(NSTimeInterval)time;
- (void)playbackComplete;
- (void)setSubtitles:(NSArray *)subtitles;
@end

THOverlayView文件是顶层视图点击播放等等控件.

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
@interface PlayerController : NSObject
@property (nonatomic, strong, readonly) UIView *view;
- (id)initWithURL:(NSURL *)assetURL;
@end

播放器的实现文件如下

#import "PlayerController.h"
#import <AVFoundation/AVFoundation.h>
#import "TransportProtocol.h"
#import "PlayerView.h"
#import "AVAsset+Additions.h"
#import "UIAlertView+Additions.h"
#import "THThumbnail.h"

// AVPlayerItem's status property
#define STATUS_KEYPATH @"status"

// Refresh interval for timed observations of AVPlayer
#define REFRESH_INTERVAL 0.5f

// Define this constant for the key-value observation context.
static const NSString *PlayerItemStatusContext;

@interface PlayerController () <TransportDelegate>

@property (nonatomic, strong) AVAsset               *asset;
@property (nonatomic, strong) AVPlayerItem          *playerItem;
@property (nonatomic, strong) AVPlayer              *player;
@property (nonatomic, strong) PlayerView            *playerView;
@property (nonatomic, weak) id <TransportProtocol>  transport;
@property (nonatomic, strong) id                    timeObserver;
@property (nonatomic, strong) id                    itemEndObserver;
@property (nonatomic, assign) float                 lastPlaybackRate;
@property (strong, nonatomic) AVAssetImageGenerator *imageGenerator;
@end

@implementation PlayerController

#pragma mark - Setup

- (id)initWithURL:(NSURL *)assetURL {
    self = [super init];
    if (self) {
        _asset = [AVAsset assetWithURL:assetURL];                           // 1
        [self prepareToPlay];
    }
    return self;
}

- (void)prepareToPlay {
    NSArray *keys = @[
                      @"tracks",
                      @"duration",
                      @"commonMetadata",
                      @"availableMediaCharacteristicsWithMediaSelectionOptions"
                      ];
    self.playerItem = [AVPlayerItem playerItemWithAsset:self.asset          // 2
                           automaticallyLoadedAssetKeys:keys];

    [self.playerItem addObserver:self                                       // 3
                      forKeyPath:STATUS_KEYPATH
                         options:0
                         context:&PlayerItemStatusContext];

    self.player = [AVPlayer playerWithPlayerItem:self.playerItem];          // 4

    self.playerView = [[PlayerView alloc] initWithPlayer:self.player];    // 5
    self.transport = self.playerView.transport;
    self.transport.delegate = self;
}

- (void)observeValueForKeyPath:(NSString *)keyPath
                      ofObject:(id)object
                        change:(NSDictionary *)change
                       context:(void *)context {

    if (context == &PlayerItemStatusContext) {

        dispatch_async(dispatch_get_main_queue(), ^{                        // 1

            [self.playerItem removeObserver:self forKeyPath:STATUS_KEYPATH];

            if (self.playerItem.status == AVPlayerItemStatusReadyToPlay) {

                // Set up time observers.                                   // 2
                [self addPlayerItemTimeObserver];
                [self addItemEndObserverForPlayerItem];

                CMTime duration = self.playerItem.duration;

                // Synchronize the time display                             // 3
                [self.transport setCurrentTime:CMTimeGetSeconds(kCMTimeZero)
                                      duration:CMTimeGetSeconds(duration)];

                // Set the video title.
                [self.transport setTitle:self.asset.title];                 // 4

                [self.player play];                                         // 5

                [self loadMediaOptions];
                [self generateThumbnails];

            } else {
                [UIAlertView showAlertWithTitle:@"Error"
                                        message:@"Failed to load video"];
            }
        });
    }
}

- (void)loadMediaOptions {
    NSString *mc = AVMediaCharacteristicLegible;                            // 1
    AVMediaSelectionGroup *group =
    [self.asset mediaSelectionGroupForMediaCharacteristic:mc];          // 2
    if (group) {
        NSMutableArray *subtitles = [NSMutableArray array];                 // 3
        for (AVMediaSelectionOption *option in group.options) {
            [subtitles addObject:option.displayName];
        }
        [self.transport setSubtitles:subtitles];                            // 4
    } else {
        [self.transport setSubtitles:nil];
    }
}

- (void)subtitleSelected:(NSString *)subtitle {
    NSString *mc = AVMediaCharacteristicLegible;
    AVMediaSelectionGroup *group =
    [self.asset mediaSelectionGroupForMediaCharacteristic:mc];          // 1
    BOOL selected = NO;
    for (AVMediaSelectionOption *option in group.options) {
        if ([option.displayName isEqualToString:subtitle]) {
            [self.playerItem selectMediaOption:option                       // 2
                         inMediaSelectionGroup:group];
            selected = YES;
        }
    }
    if (!selected) {
        [self.playerItem selectMediaOption:nil                              // 3
                     inMediaSelectionGroup:group];
    }
}


#pragma mark - Time Observers

- (void)addPlayerItemTimeObserver {

    // Create 0.5 second refresh interval - REFRESH_INTERVAL == 0.5
    CMTime interval =
    CMTimeMakeWithSeconds(REFRESH_INTERVAL, NSEC_PER_SEC);              // 1

    // Main dispatch queue
    dispatch_queue_t queue = dispatch_get_main_queue();                     // 2

    // Create callback block for time observer
    __weak PlayerController *weakSelf = self;                             // 3
    void (^callback)(CMTime time) = ^(CMTime time) {
        NSTimeInterval currentTime = CMTimeGetSeconds(time);
        NSTimeInterval duration = CMTimeGetSeconds(weakSelf.playerItem.duration);
        [weakSelf.transport setCurrentTime:currentTime duration:duration];  // 4
    };

    // Add observer and store pointer for future use
    self.timeObserver =                                                     // 5
    [self.player addPeriodicTimeObserverForInterval:interval
                                              queue:queue
                                         usingBlock:callback];
}

- (void)addItemEndObserverForPlayerItem {

    NSString *name = AVPlayerItemDidPlayToEndTimeNotification;

    NSOperationQueue *queue = [NSOperationQueue mainQueue];

    __weak PlayerController *weakSelf = self;                             // 1
    void (^callback)(NSNotification *note) = ^(NSNotification *notification) {
        [weakSelf.player seekToTime:kCMTimeZero                             // 2
                  completionHandler:^(BOOL finished) {
                      [weakSelf.transport playbackComplete];                          // 3
                  }];
    };

    self.itemEndObserver =                                                  // 4
    [[NSNotificationCenter defaultCenter] addObserverForName:name
                                                      object:self.playerItem
                                                       queue:queue
                                                  usingBlock:callback];
}

#pragma mark - THTransportDelegate Methods

- (void)play {
    [self.player play];
}

- (void)pause {
    self.lastPlaybackRate = self.player.rate;
    [self.player pause];
}

- (void)stop {
    [self.player setRate:0.0f];
    [self.transport playbackComplete];
}

- (void)jumpedToTime:(NSTimeInterval)time {
    [self.player seekToTime:CMTimeMakeWithSeconds(time, NSEC_PER_SEC)];
}

- (void)scrubbingDidStart {                                                 // 1
    self.lastPlaybackRate = self.player.rate;
    [self.player pause];
    [self.player removeTimeObserver:self.timeObserver];
    self.timeObserver = nil;
}

- (void)scrubbedToTime:(NSTimeInterval)time {                               // 2
    [self.playerItem cancelPendingSeeks];
    [self.player seekToTime:CMTimeMakeWithSeconds(time, NSEC_PER_SEC) toleranceBefore:kCMTimeZero toleranceAfter:kCMTimeZero];
}

- (void)scrubbingDidEnd {                                                   // 3
    [self addPlayerItemTimeObserver];
    if (self.lastPlaybackRate > 0.0f) {
        [self.player play];
    }
}


#pragma mark - Thumbnail Generation

- (void)generateThumbnails {

    self.imageGenerator =                                                   // 1
    [AVAssetImageGenerator assetImageGeneratorWithAsset:self.asset];

    // Generate the @2x equivalent
    self.imageGenerator.maximumSize = CGSizeMake(200.0f, 0.0f);             // 2

    CMTime duration = self.asset.duration;

    NSMutableArray *times = [NSMutableArray array];                         // 3
    CMTimeValue increment = duration.value / 20;
    CMTimeValue currentValue = 2.0 * duration.timescale;
    while (currentValue <= duration.value) {
        CMTime time = CMTimeMake(currentValue, duration.timescale);
        [times addObject:[NSValue valueWithCMTime:time]];
        currentValue += increment;
    }

    __block NSUInteger imageCount = times.count;                            // 4
    __block NSMutableArray *images = [NSMutableArray array];

    AVAssetImageGeneratorCompletionHandler handler;                         // 5

    handler = ^(CMTime requestedTime,
                CGImageRef imageRef,
                CMTime actualTime,
                AVAssetImageGeneratorResult result,
                NSError *error) {

        if (result == AVAssetImageGeneratorSucceeded) {                     // 6
            UIImage *image = [UIImage imageWithCGImage:imageRef];
            id thumbnail =
            [THThumbnail thumbnailWithImage:image time:actualTime];
            [images addObject:thumbnail];
        } else {
            NSLog(@"Error: %@", [error localizedDescription]);
        }

        // If the decremented image count is at 0, we're all done.
        if (--imageCount == 0) {                                            // 7
            dispatch_async(dispatch_get_main_queue(), ^{
                NSString *name = THThumbnailsGeneratedNotification;
                NSNotificationCenter *nc = [NSNotificationCenter defaultCenter];
                [nc postNotificationName:name object:images];
            });
        }
    };

    [self.imageGenerator generateCGImagesAsynchronouslyForTimes:times       // 8
                                              completionHandler:handler];
}


#pragma mark - Housekeeping

- (UIView *)view {
    return self.playerView;
}

- (void)dealloc {
    if (self.itemEndObserver) {                                             // 5
        NSNotificationCenter *nc = [NSNotificationCenter defaultCenter];
        [nc removeObserver:self.itemEndObserver
                      name:AVPlayerItemDidPlayToEndTimeNotification
                    object:self.player.currentItem];
        self.itemEndObserver = nil;
    }
}

@end

这里说一下如何监听时间从而得知播放时间回调

监听时间

当播放器播放的时候我们无法得知播放到播放器的哪个位置,为了解决这个问题AVPlayerItem添加了两个监听播放的方法以及具体的用法API.

定期监听

- (id)addPeriodicTimeObserverForInterval:(CMTime)interval
                                   queue:(nullable dispatch_queue_t)queue
                              usingBlock:(void (^)(CMTime time))block;

这里主要是为了随着时间的变化移动播放器seek位置更新时间显示,通过AVPlayer的addPeriodicTimeObserverForInterval:queue:usingBlock: 来监听播放时间的变化

interv监听周期的间隔CMTime
queue 通知发送的顺序调度队列,一般我们都放在主线程回掉.(注意这里不能放在并行队列中)
block 指定周期的时间回调.

下面是示例代码

- (void)addPlayerItemTimeObserver {

    // Create 0.5 second refresh interval - REFRESH_INTERVAL == 0.5
    CMTime interval =
    CMTimeMakeWithSeconds(REFRESH_INTERVAL, NSEC_PER_SEC);              // 1

    // Main dispatch queue
    dispatch_queue_t queue = dispatch_get_main_queue();                     // 2

    // Create callback block for time observer
    __weak PlayerController *weakSelf = self;                             // 3
    void (^callback)(CMTime time) = ^(CMTime time) {
        NSTimeInterval currentTime = CMTimeGetSeconds(time);
        NSTimeInterval duration = CMTimeGetSeconds(weakSelf.playerItem.duration);
        [weakSelf.transport setCurrentTime:currentTime duration:duration];  // 4
    };

    // Add observer and store pointer for future use
    self.timeObserver =                                                     // 5
    [self.player addPeriodicTimeObserverForInterval:interval
                                              queue:queue
                                         usingBlock:callback];
}

边界监听

什么叫边界监听呢?就是播放器播放到某个时间的触发的时间位置.

- (id)addBoundaryTimeObserverForTimes:(NSArray<NSValue *> *)times
                                queue:(nullable dispatch_queue_t)queue
                           usingBlock:(void (^)(void))block;

times CMTime值组成一个NSArray,这里面定义的一个时间点的数组.eg: 25% 50% 75%等时间点.
queue 通知发送的顺序调度队列,一般我们都放在主线程回掉.(注意这里不能放在并行队列中)
block 指定周期的时间回调.

显示字幕

AVPlayerLayer里有两个类来处理字幕

AVMediaSelectionGroup
AVMediaSelectionOption

AVMediaSelectionOption 用于表示AVAsset备用媒体显示.在前几篇中我讲过一个媒体元数据中有音频轨、视频轨、字幕轨,备用相机角度等.

我们如果想找出字幕的话需要用到AVAsset的availableMediaCharacteristicsWithMediaSelectionOptions属性.

@property (nonatomic, readonly) NSArray<AVMediaCharacteristic> *availableMediaCharacteristicsWithMediaSelectionOptions NS_AVAILABLE(10_8, 5_0);

这个属性会返回一个数组的字符串,这些字符串用于表示保存在资源中可用选项的媒体特征,其实数组中包含的字符串的值为如下：

AVMediaCharacteristicVisual 视频
AVMediaCharacteristicAudible 音频
AVMediaCharacteristicLegible 字幕或隐藏式字幕

- (nullable AVMediaSelectionGroup *)mediaSelectionGroupForMediaCharacteristic:(AVMediaCharacteristic)mediaCharacteristic NS_AVAILABLE(10_8, 5_0);

请求可用媒体特性数据后,调用AVAsset的mediaSelectionGroupForMediaCharacteristic:方法.为其传递要检索的选项的特定媒体特征.这个方法返回一个AVMediaSelectionGroup,它作为一个或多个互斥的AVMediaSelectionGroup实例的容器.

- (void)loadMediaOptions {
    NSString *mc = AVMediaCharacteristicLegible;                            // 1
    AVMediaSelectionGroup *group =
        [self.asset mediaSelectionGroupForMediaCharacteristic:mc];          // 2
    if (group) {
        NSMutableArray *subtitles = [NSMutableArray array];                 // 3
        for (AVMediaSelectionOption *option in group.options) {
            [subtitles addObject:option.displayName];
        }
        [self.transport setSubtitles:subtitles];                            // 4
    } else {
        [self.transport setSubtitles:nil];
    }
}

AirPlay

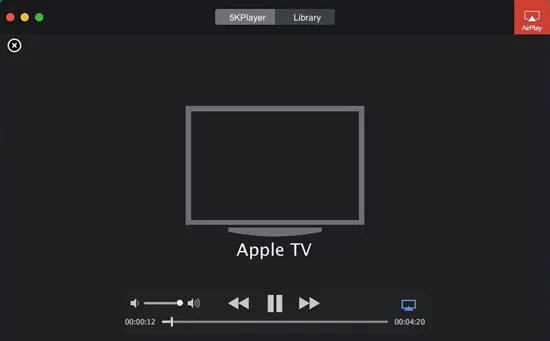

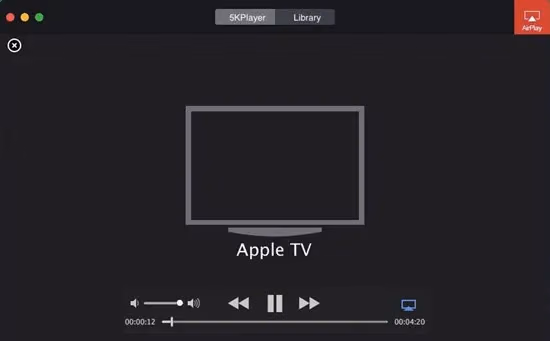

AirPlay相信大部分iOS开发者都耳熟能详,这个东西是用于无线方式将流媒体音频/视频内容在Apple TV上播放.或者将纯音频内容在多种第三方音频系统中播放(如汽车中内置的CarPlay).如果大家有Apple TV或其它音频系统中的一个,就会觉得这个功能实在太实用了.其实把这个功能整合到我们的APP中十分容易.

AVPlayer有一个属性是allowsExternalPlayback,允许启用或者禁用AirPlay播放功能.该属性默认是YES,即在不做任何额外编码的情况下,播放器应用程序也会自动支持AirPlay功能.

@property (nonatomic) BOOL allowsExternalPlayback NS_AVAILABLE(10_11, 6_0);

不过从iOS11之后才有专门针对AirPlay的framework功能API,在以前我们使用Media Player中的MPVolumeView来实现.

示例代码:

	MPVolumeView *volumeView = [[MPVolumeView alloc] init];
    volumeView.showsVolumeSlider = NO;
    [volumeView sizeToFit];
    [transportView addSubview:volumeView];

当AirPlay可用时,而且WIFI 网络启用时才会显示线路选择按钮.这两个条件只有一个不满足, MPVolumeView 就会自动隐藏按钮.

总结

本章讲述了如何使用AVPlayer以及AVPlayerItem 的一些属性监听播放进度回调,取字幕等等.

详细demo请参考

Learning AV Foundation(五)播放视频

前言

AVPlayer

AVPlayerLayer

AVPlayerItem

播放示例

CMTime

创建自己的播放器

监听时间

定期监听

边界监听

显示字幕

AirPlay

总结

热门标签

Learning AV Foundation(五)播放视频

前言

AVPlayer

AVPlayerLayer

AVPlayerItem

播放示例

CMTime

创建自己的播放器

监听时间

定期监听

边界监听

显示字幕

AirPlay

总结

接下来阅读

深入理解CVPixelBufferRef

Learning AV Foundation(一)汉字语音朗读

Learning AV Foundation(二)AVAudioPlayer

热门标签
